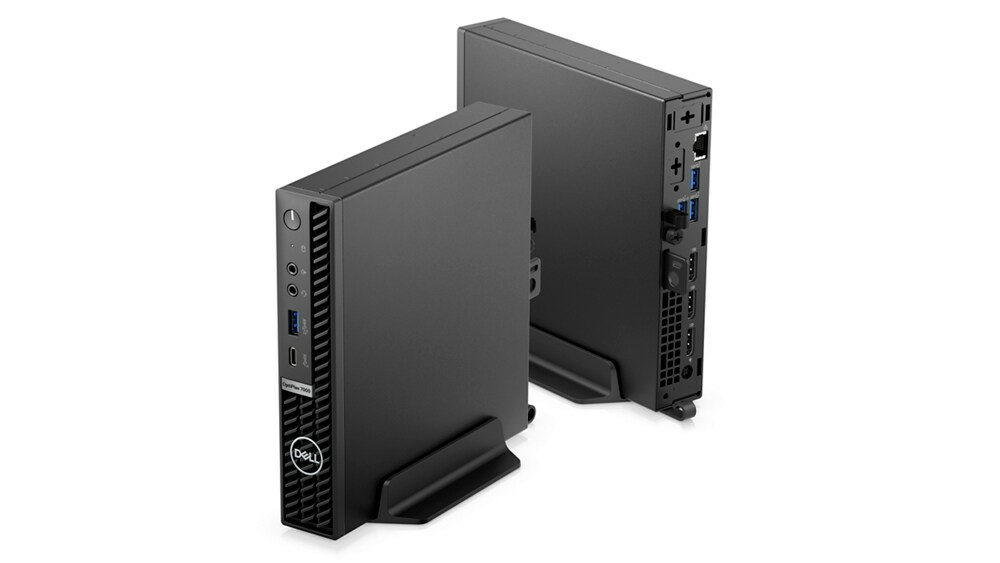

DELL OptiPlex 7020 Plus Intel® Core™ i5 i5-14500 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro MFF Mini PC Black

SKU
2PTC6

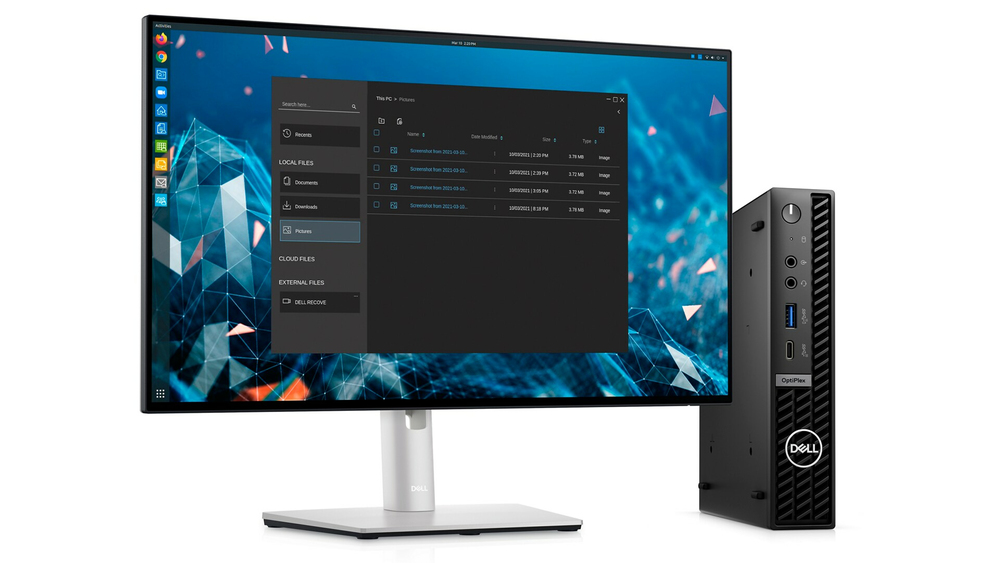

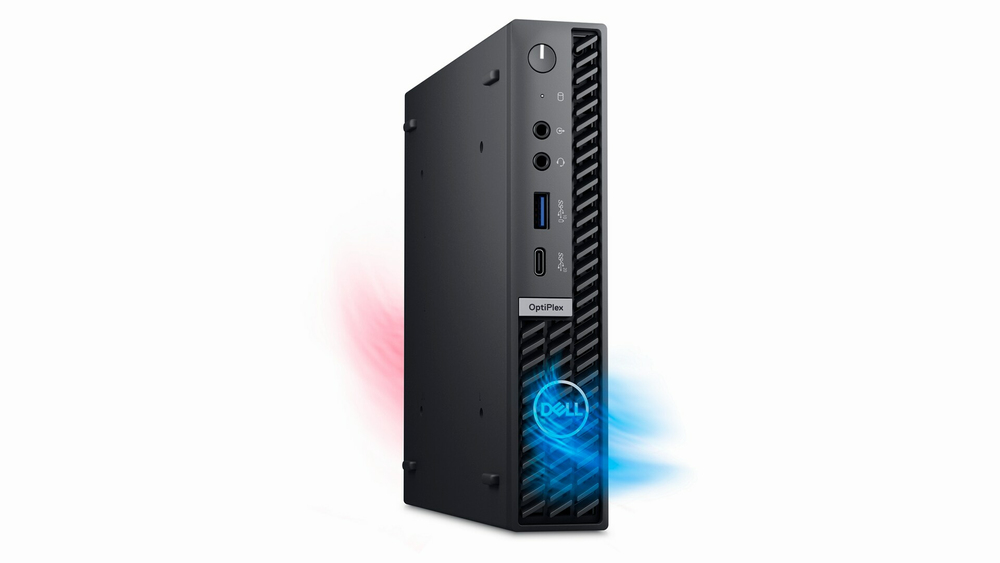

main product photo
$983.06
Out of stock
Intel Core i5-14500 (24MB Cache), 16GB DDR5-SDRAM, 512GB SSD, Intel UHD Graphics 770, LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit
Category: PCs/Workstations

Free Delivery
For all oders over $99

90 Days Return
If goods have problems

Secure Payment
100% secure payment

24/7 Support
Dedicated support
High performance commercial desktop with DDR5 memory, 5 native USBs including 1 USB-C, and 3 native DisplayPorts
SKU 2PTC6
EAN 0884116462460
Specification
Processor
Processor generationIntel® Core™ i5 (14th gen)
Processor cache typeSmart Cache
Processor cache24 MB
Processor modeli5-14500
Number of processors installed1
Processor manufacturerIntel
Processor boost frequency5 GHz
Processor threads20
Processor cores14
Processor familyIntel® Core™ i5
Performance cores6
Efficient cores8
Performance-core base frequency2.6 GHz
Efficient-core base frequency1.9 GHz
Processor base power65 W
Maximum turbo power154 W
Efficient-core Max Turbo Frequency3.7 GHz
Performance-core Max Turbo Frequency5 GHz
Memory
Non-ECCYes
Internal memory16 GB
Memory layout (slots x size)1 x 16 GB
Maximum internal memory64 GB
Memory slots2x SO-DIMM
Internal memory typeDDR5-SDRAM
Memory data transfer rate5600 MT/s
Storage
Storage mediaSSD
Number of storage drives installed1
Optical drive typeNo
SSD interfacePCI Express
SSD capacity512 GB
Number of SSDs installed1
Total storage capacity512 GB
SSD form factorM.2
Total SSDs capacity512 GB
NVMeYes
Graphics
Discrete graphics cardNo
On-board graphics card familyIntel® UHD Graphics
On-board graphics cardYes
Discrete graphics card modelNot available
On-board graphics card modelIntel UHD Graphics 770
On-board GPU manufacturerIntel
Optical drive
Optical drive typeNo
Network
Ethernet LANYes
Wi-FiYes
BluetoothYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet LAN data rates10,100,1000 Mbit/s
WLAN controller modelIntel Wi-Fi 6E AX211
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Antenna type2x2
WLAN controller manufacturerIntel
Ports & interfaces
Combo headphone/mic portYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
Microphone inYes
Ethernet LAN (RJ-45) ports1
DisplayPorts quantity3
DC-in jackYes
PowerShareYes
Number of USB ports with PowerShare support1
DisplayPort version1.4a
USB 3.2 Gen 2x2 Type-C ports quantity1
Technical details
Cable lock slot typeKensington
Product typeMini PC
Trusted Platform Module (TPM)Yes
Product colourBlack

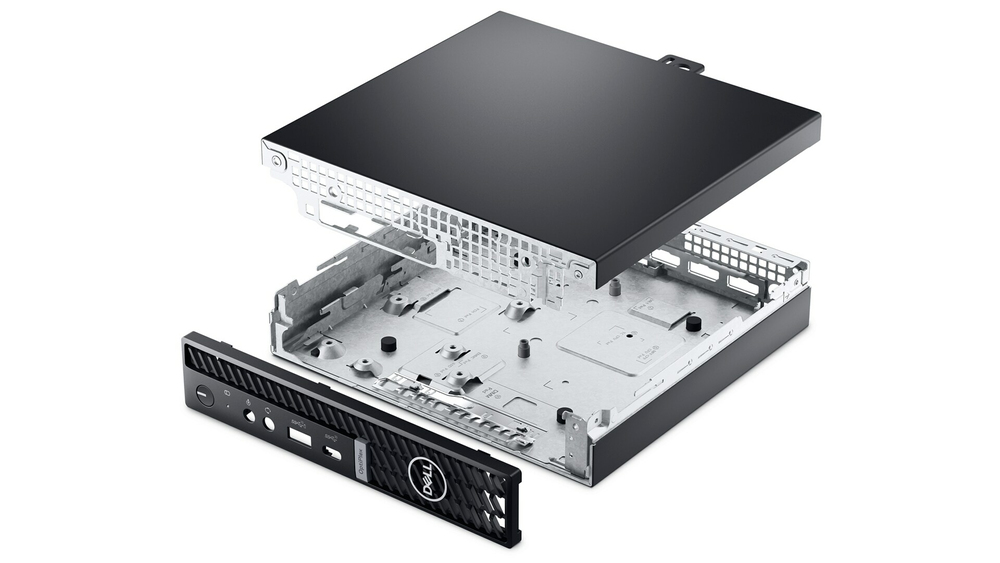

Chassis typeMFF

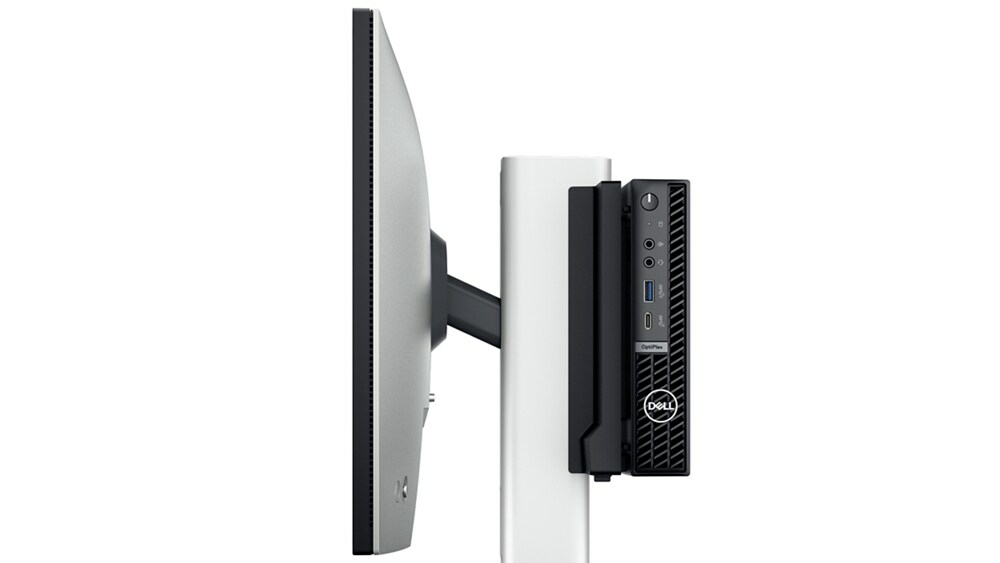

Placement supportedHorizontal/Vertical
Cable lock slotYes
Motherboard chipsetIntel Q670
Sustainability certificatesTCO, ENERGY STAR, EPEAT Climate +
Doesn't containPVC/BFR
Design
Cable lock slot typeKensington
Product colourBlack
Chassis typeMFF
Placement supportedHorizontal/Vertical
Cable lock slotYes
Performance
Audio chipRealtek ALC3246
Market positioningBusiness
Number of speakers1
Password protectionYes
Product typeMini PC
Trusted Platform Module (TPM)Yes
Built-in speaker(s)Yes
Motherboard chipsetIntel Q670
Trusted Platform Module (TPM) version2.0
Software
Operating system architecture64-bit

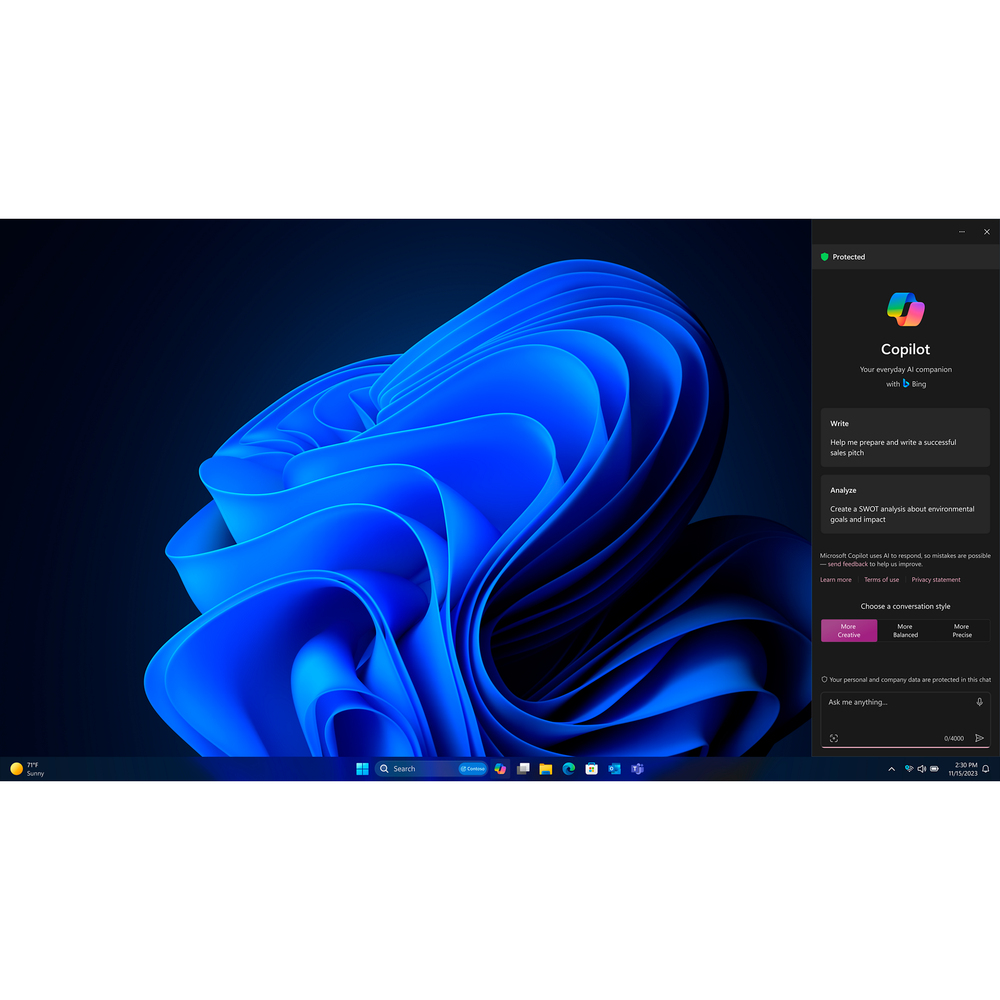

Operating system installedWindows 11 Pro
Power
Power supply input frequency50/60 Hz
Power supply input voltage100 - 240 V
Power supply180 W
Operational conditions
Operating altitude-598.4 - 120000" (-15.2 - 3048 m)
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)5 - 95%
Operating temperature (T-T)10 - 35 °C
Non-operating altitude-598.4 - 420000" (-15.2 - 10668 m)
Operating vibration0.26 G
Non-operating vibration1.37 G
Operating shock40 G
Non-operating shock105 G
Sustainability
Sustainability certificatesTCO, ENERGY STAR, EPEAT Climate +
Doesn't containPVC/BFR
Weight & dimensions
Width1.42" (36 mm)
Depth7.01" (178 mm)
Height7.17" (182 mm)
Weight2.98 lbs (1.35 kg)
Packaging content
Mouse includedYes
Display includedNo
Keyboard includedYes
Other features
Number of speakers1
Trusted Platform Module (TPM)Yes
On-board graphics cardYes
Processor manufacturerIntel
Built-in speaker(s)Yes
Manufacturer DELL
Availability Out of Stock
